LMI for Rough-Terrain Crane — JL-5000-070
Load moment indicator for rough-terrain cranes: boom length, angle, radius and actual vs rated load with alarm and cut-off.
JL-5000-070

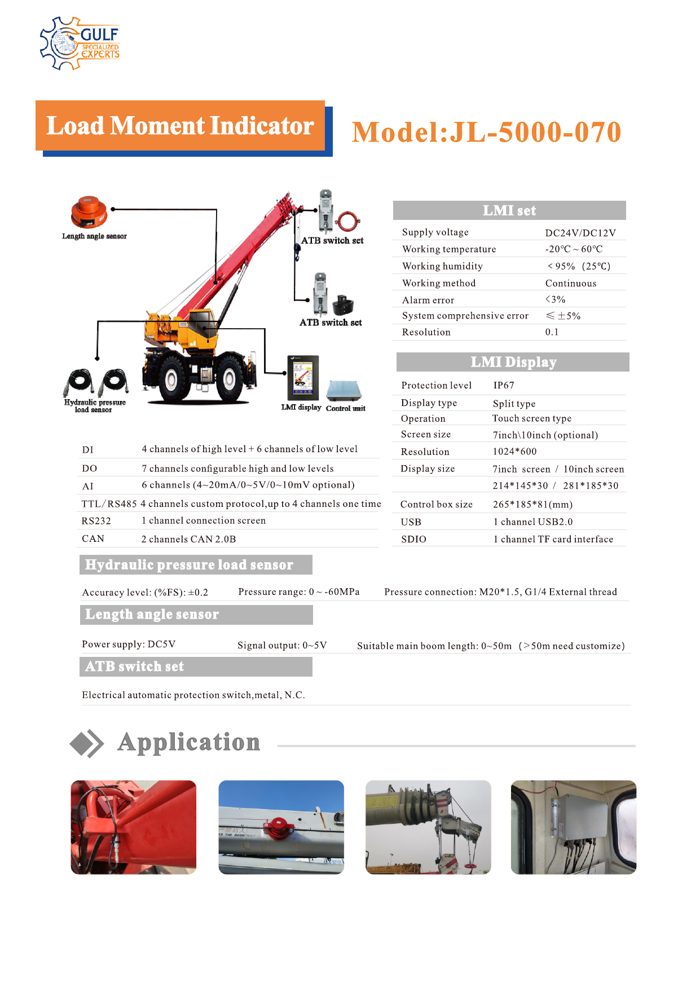

Datasheet (PDF) — open
Specifications
- Hydraulic pressure load sensors (0–60 MPa, ±0.2 %FS)
- Length-angle sensor, boom 0–50 m (longer on request)
- ATB (anti-two-block) switch sets
- Display: 7" / 10" split touch screen, IP67, 1024 × 600
- DC24V / DC12V · −20 °C to 60 °C
- Alarm error < 3% · system error ≤ ±5%
- 2 × CAN 2.0B · 4 × TTL/RS485 · RS232 · USB & TF-card logging
Datasheet (PDF) — open More in Safety Devices
-
