Heavy Equipment Remote For Concrete Pump & Crans
SPECIFICATION
The Industrial Radio Remote Control system is rugged and reliable, suitable for use with 4 or 5-motion, Analog speed complex Boom or cranes
(up/down/east/west/south/north/ Rotary /Fast/Slow /R1- R16 motions), A/B/Both crane installations, And Many other industrial applications.
The receiver has a red “ON” indicator light and is pre-cabled for easy installation, and the transmitters are Supplied to maximize your equipment’s uptime the safe solution to your wireless control needs.
Technical Parameter
| Typical applications | Concrete pump, Overhead cranes, hoist,chainhoist3 |
| Operating distance | Frequency range 410 – 441 MHz, Chanel 32 |
| Temperature Rating | -35°C ~ +85°C |
| Frequency | Crystal (plug-in) |
| Frequency Band | Selectable (20 , 17 ,14, 10dbm ) |
| Transmitting Power | Selectable Level ( 0.3, 1.2 , 2.4 , 4.8 , 9.6 , 19.2 kbps ) |
| Air data rate | 1 Year |
| Security coding | 4.3 billion unique ID code |
| Environmental rating | IP 65 |
| Warranty | 1 Years |
| Temperature rating | -35 deg C a 75 deg C (-31 deg F a167 deg F) |
SPECIFICATION RECEIVER
| RX Size | W 25 cm x D 15cm x L 40 cm |
| RX Power supply input 24 VDC | Available supply 220VAC 12/24 VDC |
| Relays operations | 10 Amp/24 V DC |
| Weights | 2 KG |
| Accessory Available | Horn device including receiver(Options) |
| Digital output | 16 |
| Analog output | 8 |
| Emergency Relay | Available |

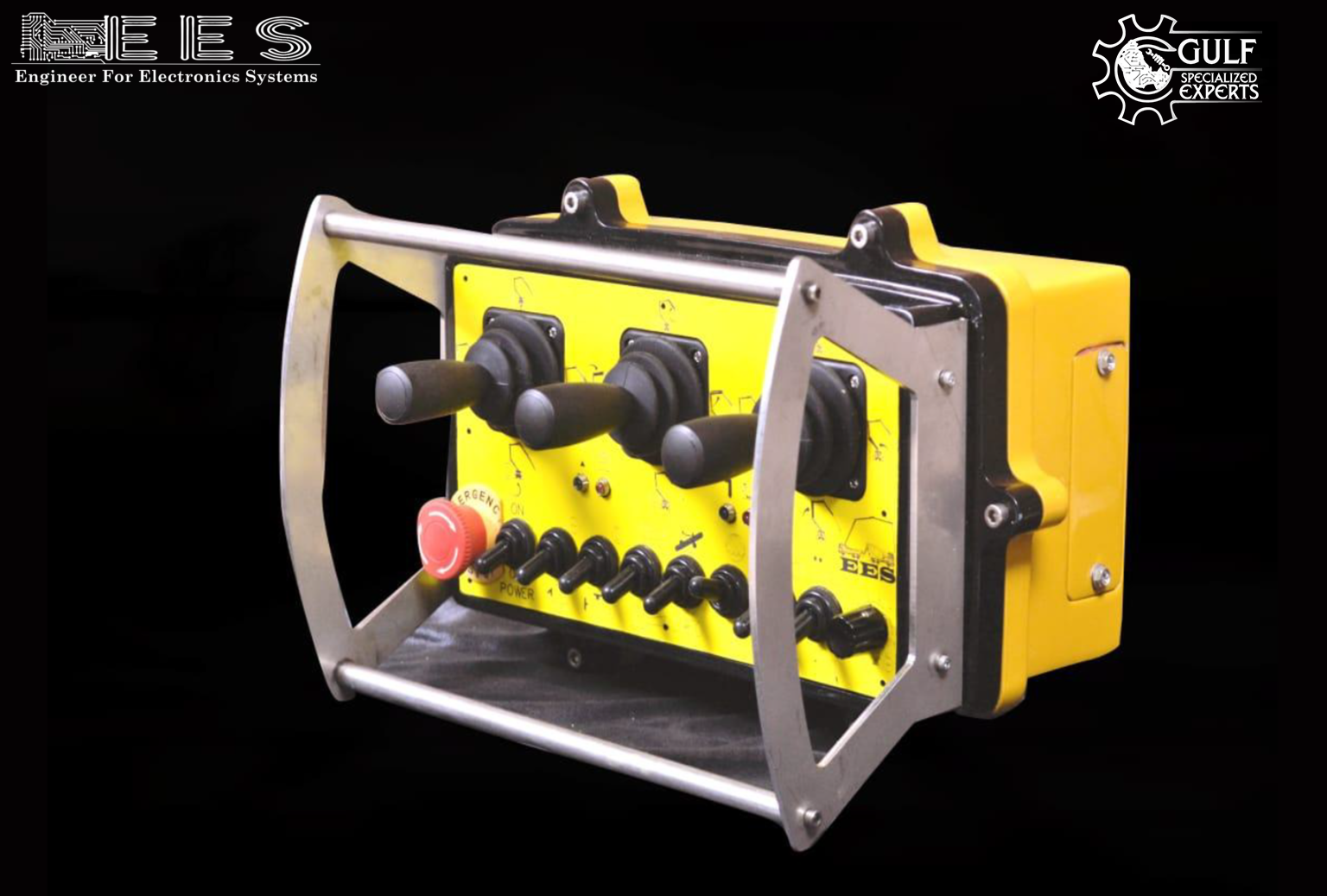

SPECIFICATION Transmitter
| Transmitters | standards delivery |
| Size | W 14cm x D 14cm x L 26cm |
| Power supply tx | 1 lithium batteries 7.2 V with battery charger |
| Indicator power battery | LED |
| Indicator connect Buttons | LED |
| Buttons | Operational to 2 Million Cycles |
| Analog input | 2 up to 4 joystick |
| Joystick type | 2 axis |
| Environmental rating | IP 65 |
